CSPS 183cm Red Tool Cabinet Set with Wooden Top and Pegboard – 12 Drawers
- Brand: CSPS
- Model: VNTC06104BC1-VNTC06104BC1-VNTC06104BC1-VNDTC61003BB1-VNDTCCT12Y42S2
- Size: 183cm W × 40cm D × 94.5 cm H
- Warranty: 2 years
Miễn phí vận chuyển toàn quốc, Giá đã bao gồm Thuế VAT
Liên hệ để nhận Giá ưu đãi đặc biệt và các Khuyến mãi
Ưu đãi khi mua từ 2 sản phẩm trở lên,
Ưu đãi khi thực hiện chuyển khoản trước hoặc mua tại cửa hàng
Nhiều Khuyến mãi, Quà tặng hấp dẫn
Ưu đãi đối với khách hàng thân thiết
- MASANPHAM: VNTC06104BC1-VNTC06104BC1-VNTC06104BC1-VNDTC61003BB1-VNDTCCT12Y42S2
- TINHTRANG: Còn Hàng
0938979908
.png)
1. GENERAL SPECIFICATIONS
Product Dimensions

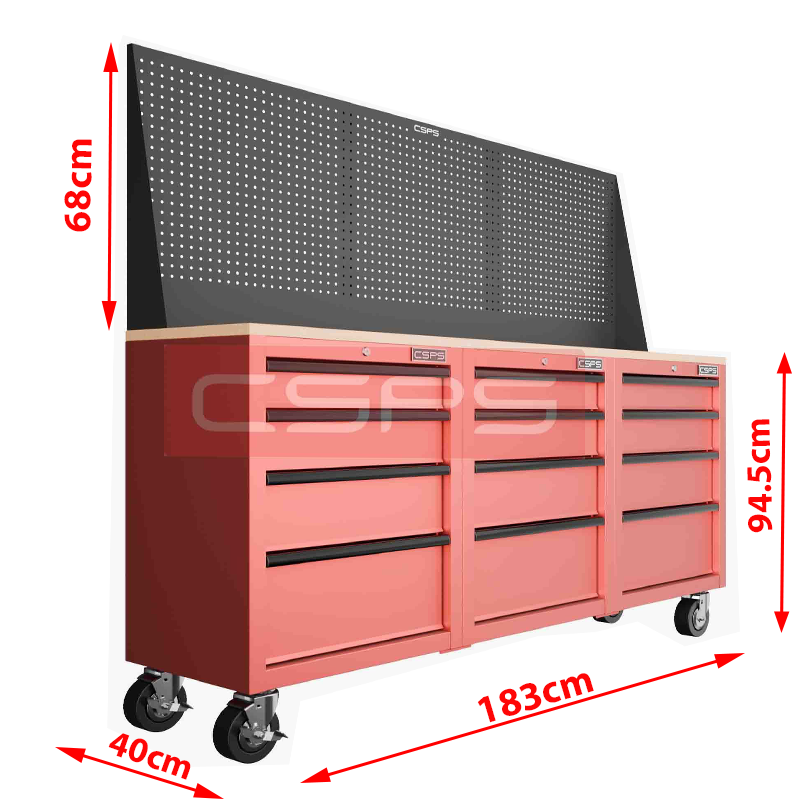

- Overall Dimensions: 183 cm (W) × 40 cm (D) × 94.5 cm (H)
-
Door Base Cabinet: 61 cm (W) × 40 cm (D) × 92 cm (H)
Quantity: 03 units -
Wooden Worktop: 183 cm (W) × 40 cm (D) × 2.5 cm (H)
Quantity: 01 pc -
Pegboard: 181 cm (W) × 15 cm (D) × 68 cm (H)
Quantity: 01 pc
Product Weight
- Door Base Cabinet: 35.3 kg/unit
- Wooden Worktop: 13 kg
- Pegboard: 9.2 kg

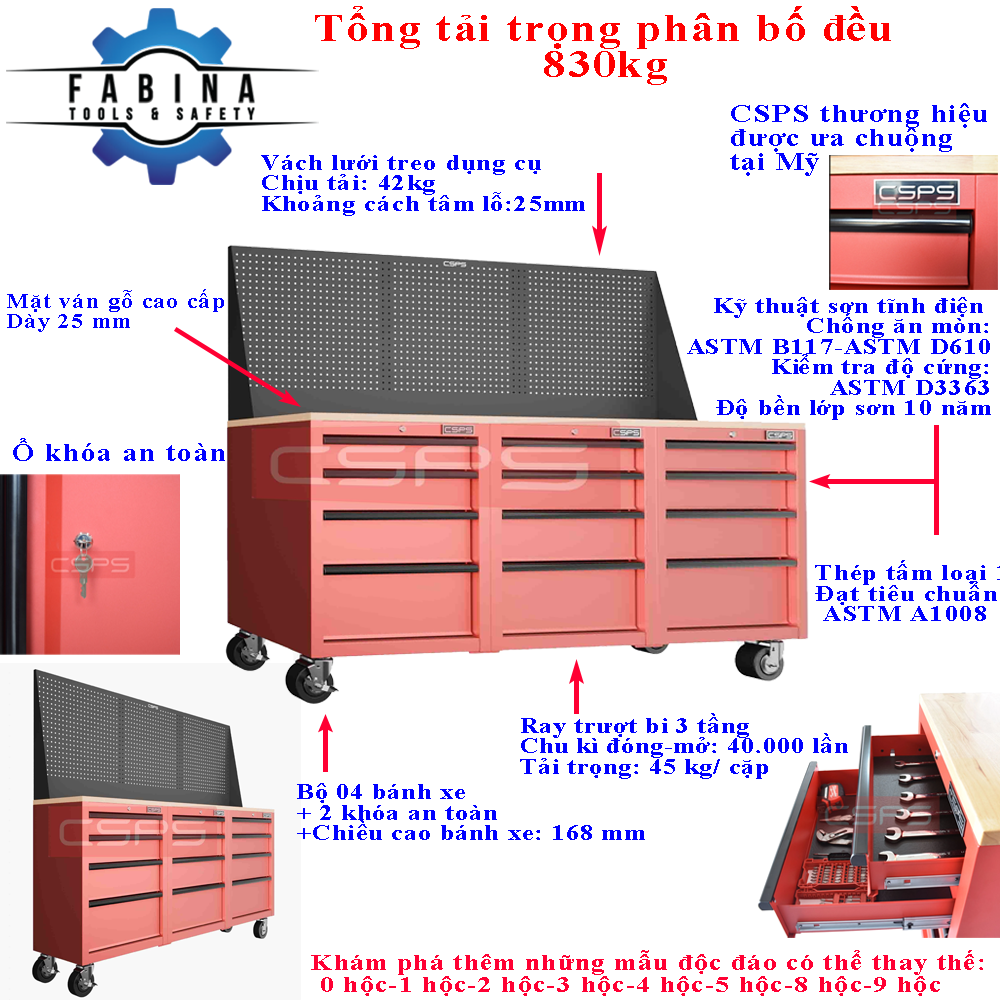

2. LOAD CAPACITY
Overall Load Capacity
- Door Base Cabinet: 450 kg per cabinet
- Wooden Worktop: 136 kg
Drawers
- Drawer Dimensions: 61 cm (W) × 40 cm (D) × 76 cm (H)
- Quantity: 12 drawers
- Drawer Slides: 3-Stage Ball Bearing Slides
- Load Capacity: 45 kg per drawer
- Drawer Slide Life Cycle: 40,000 opening/closing cycles
3. FEATURES
Locking System
- Cabinet Locks: 03
- Minimum Lock Pull-Out Strength: 45 kgf
Finish
- Colour: Matte Red
- Coating: Electrostatic Powder Coating
- Coating Durability: Up to 10 years
Casters
- 02 Swivel Casters (without brakes)
- 02 Swivel Casters (with brakes)
- Caster Load Capacity: 1,000 kg
Wooden Worktop
- Quantity: 01 pc
- Dimensions: 183 cm (W) × 40 cm (D) × 2.5 cm (H)
- Weight: 13 kg
4. STANDARDS
Appearance
- 16 CFR 1500.48 / 1500.49 (Scope Widened): Sharp Point Test
- 16 CFR 1303: Lead-Containing Paint Test
Powder Coating
- ASTM B117 (Modified) & ASTM D610 (Modified): Corrosion Resistance Test
- ASTM D3363 (Modified): Coating Hardness Test
- ASTM D2794: Impact Resistance Test
- ASTM D4752: Solvent Resistance Rub Test
- ASTM D3359: Cross-Cut Adhesion Test
Steel Material
- ASTM A1008: Standard Specification for Steel Sheet
Performance
- ANSI/BIFMA X5.9: Storage Unit Performance Test, including Static Load Test, Dynamic Load Test, and Durability Test.
